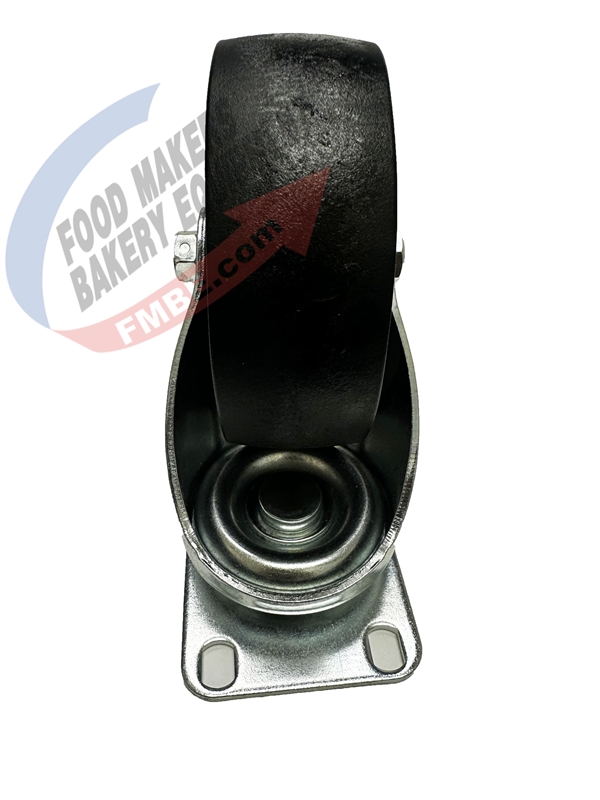

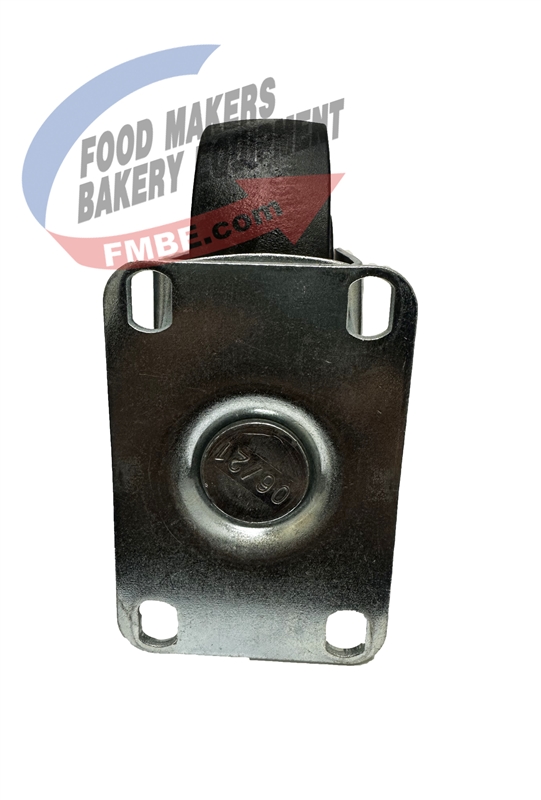

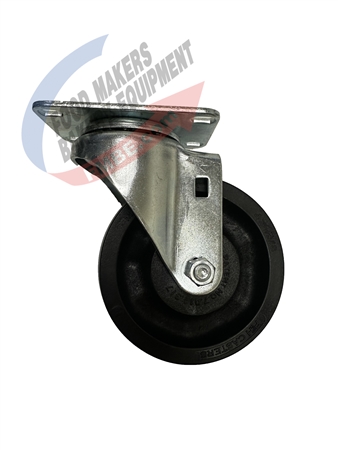

High Temperature Oven Caster - Small Size Plate
High Temperature Oven Caster - Small Size Plate
CLICK IMAGE TO ENLARGE.


Alternative Views:

This Item Ships Via Ground (1-6 days).
Subject To Availability

Contact Us
Parts Dept.
Our Price: $18.75


Part Number: 8P1502

Description Technical Specs

SMALL SIZE PLATE
OVEN CASTER HIGH TEMPERATURE
Tough, Industrial, High Quality Caster For Baking & Proofing.
Standard Features:
  • High Temperature Caster Assembly

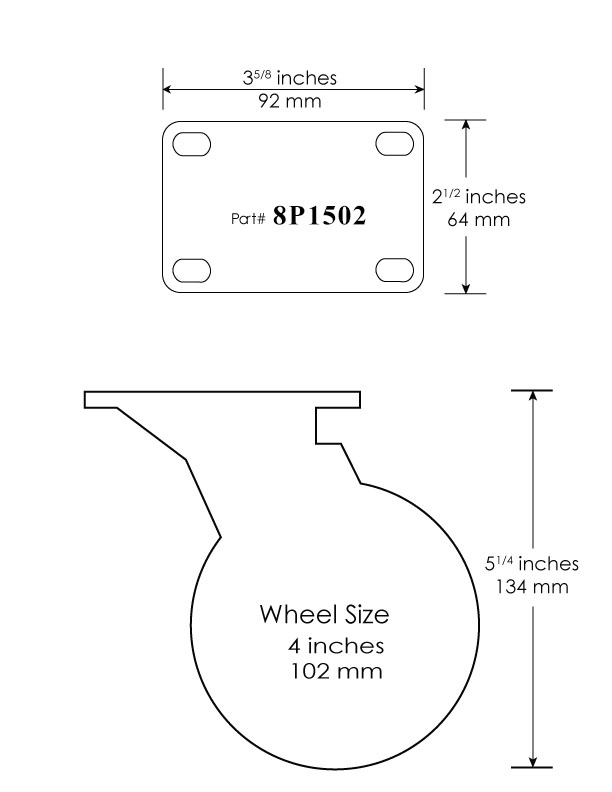

  • Overall Height = 5-1/4", Small Plate Size = 3-5/8" x 2-1/2", Wheel Size = 4" x 1-1/2"
  • Wheel Includes Integrated Bushing With Sealed Bearings
  • Temperature Range : -45° F to 475° F. Continuously, 525° F. Intermittent
  • Also Available in Medium & Large Plate Sizes
Technical Data
Item #
8P1502
Plate Size:
SMALL
Plate Dims:
3-5/8 in x 2-1/2 in
Wheel Size:
4 in. - Diameter
Overall Height:
5-1/4 in.
DOWNLOAD PDF
