Sottoriva Dual 250 Main Motor. CSM Motori #211224. 20-32Hp
Sottoriva Dual 250 Main Motor. CSM Motori #211224

Alternative Views:

This Item Ships Via Ground (1-6 days).
Subject To Availability

Need It Fast? Contact Us
Parts Dept.


Our Price: $3,829.00


Part Number: 5P1607
Currently Unavailable - Call In

Description

Sottoriva Dual 250 Main Motor
Main Motor Dual Tool Mixer

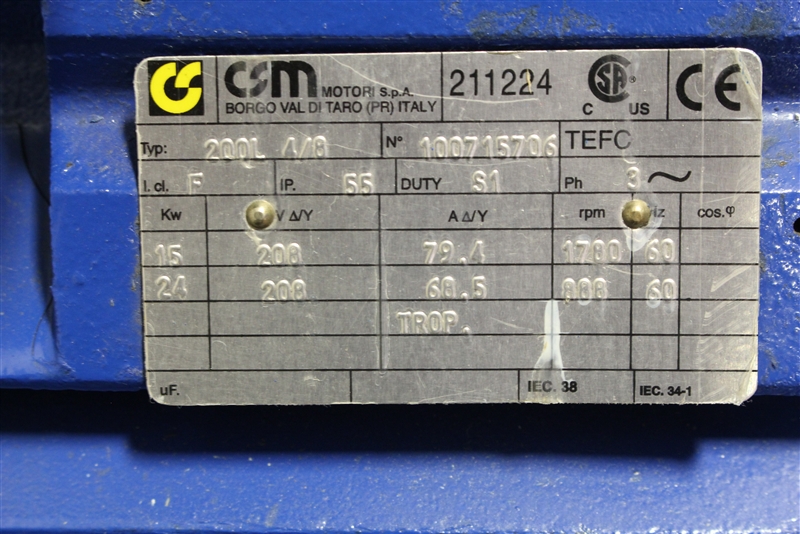

CSM Motori #211224, Type 200L 4/8
15Kw - 208 V. 79.4 A. 1780 rpm 60 Hz
20Kw- 208 V. 68.5 A. 888 rpm 60 Hz.

15Kw = 20.115Hp
24Kw = 32.185 Hp.

Approx. dimensions :

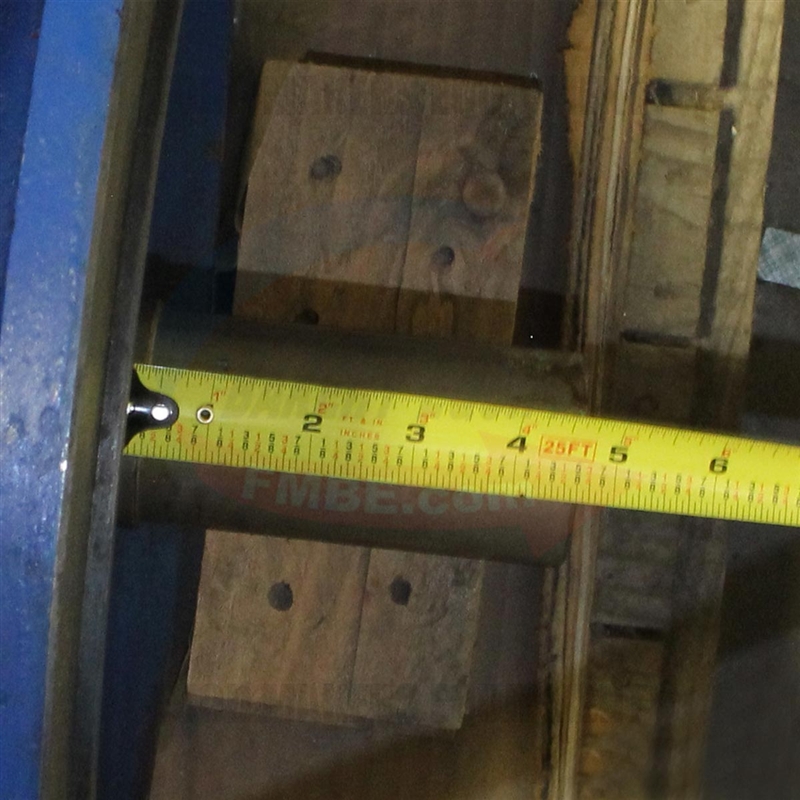

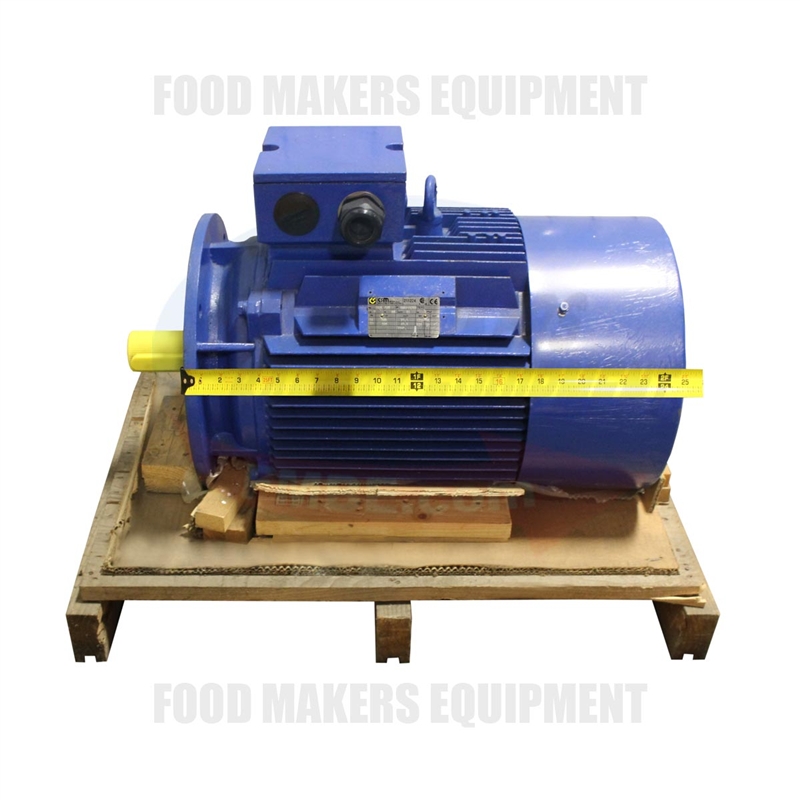

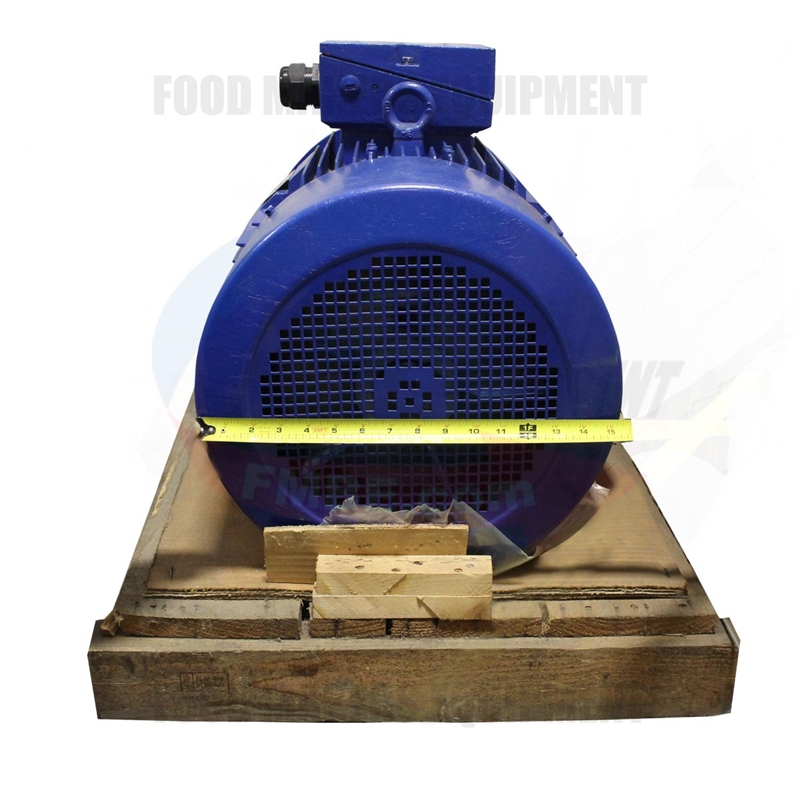

Body: 25" long x 15- 1/2" dia.

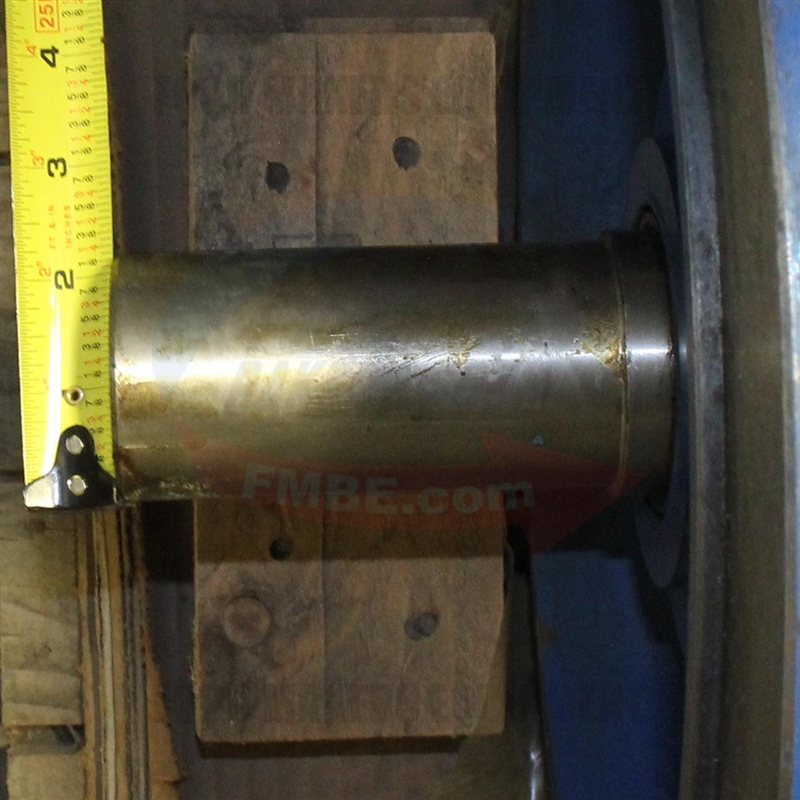

Shaft: 4- 5/8" long x 2-1/8" dia.

Sottoriva Spiral Mixer
FME # 5P1607

*This motor is considered an overweight / oversized item. In addition to the shipping cost an extra $15.00 "Shipping and Handling" charge will be applied to this item.
