Sottoriva PRISMA ARCA Self-Tilting Fork Mixer
Sottoriva PRISMA ARCA Self-Tilting Fork Mixer
Sottoriva PRISMA ARCA Self-Tilting Fork Mixer



Downloads



Part Number: PRISMA-ARCA


Description

Sottoriva PRISMA ARCA Self-Tilting Fork Mixer
€0.00 (Price in Euros)

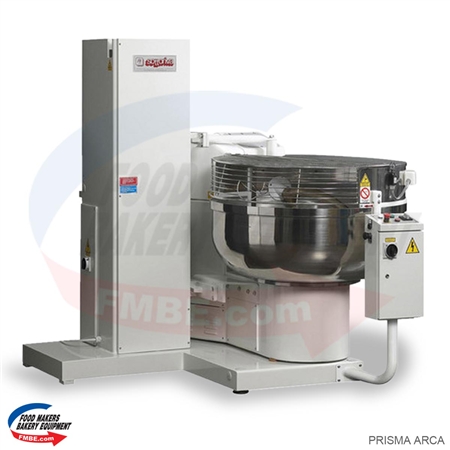

Sottoriva PRISMA ARCA Self-Tilting Fork Mixer

This machine is composed by ARCA fork mixer and a PRISMA
hydraulic tilting device for the pouring of dough onto table or into
an hopper- of a divider, for example – placed on the left hand side
of the machine. The fork mixer is available in a wide range of
mixing capacities , from 140 to 250 kg.

  • Thick steel sheet structure.

  • High resistance tool.

  • Stainless steel bowl.

Two speeds tool rotation with manual change from 1st to 2nd
speed by mean of a selector.

Both the bowl and the spiral can be rotated through impulse
activation when the bowl is in tilting position, to facilitate the
pouring of the dough . The version required must be specified on
order ( dough unloading onto table or into hopper) as well as
pouring height and side.

Mod.

Mixer power KW

Lifter power KW

Bowl volume lt

Max. dough capacity kg

PRISMA-ARCA 140 B

2.06 / 3.68

0.75

180

140

PRISMA-ARCA 200 B

2.58 / 4.78

0.75

220

200

PRISMA-ARCA 250 B

2.58 / 4.78

0.75

325

250

PRISMA-ARCA 140 S

2.06 / 3.68

0.75

180

140

PRISMA-ARCA 200 S

2.58 / 4.78

0.75

220

200

PRISMA-ARCA 250 S

2.58 / 4.78

0.75

325

250

Machine mass kg

Mass with packing kg

Packing dimensions (LPH) mm

915

1015

2050 x 2050 x 1600

953

1053

2050 x 2050 x 1600

963

1063

2050 x 2050 x 1600

1135

1215

2050 x 2050 x 2000

1173

1253

2050 x 2050 x 2000

1190

1270

2050 x 2050 x 2000
