Sottoriva Spiral Mixer With Removable Bowl
Sottoriva Spiral Mixer With Removable Bowl
CLICK IMAGE TO ENLARGE


Downloads




Part Number: SA-SERIES


Description

Sottoriva Bench Type Bread Grinder
Sottoriva Spiral Mixer With Removable Bowl

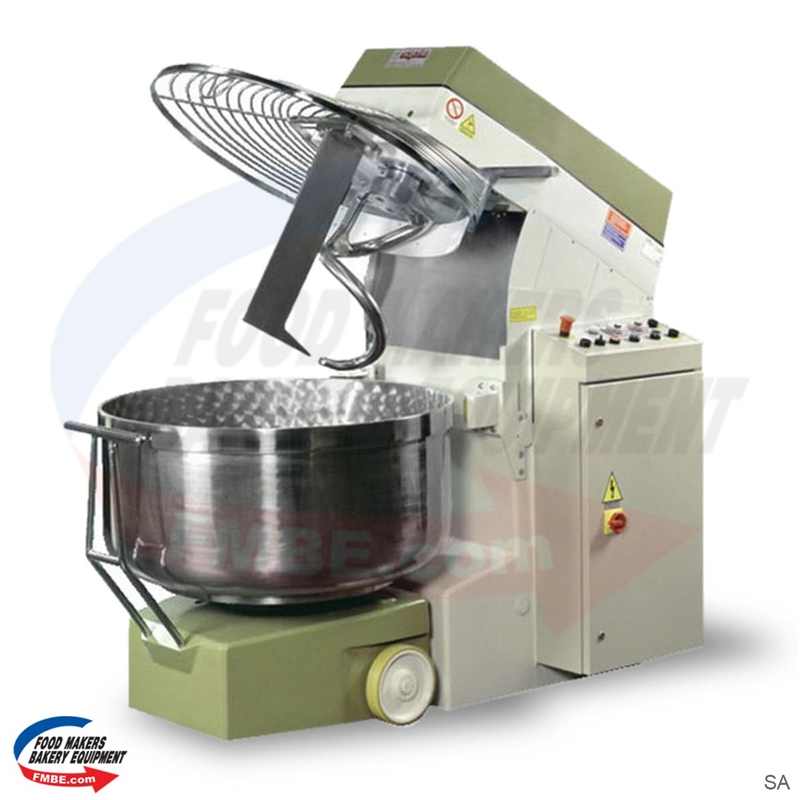

Spiral mixer with cast iron structure. AISI 304 stainless steel bowl. High resistance stanless steel shaft and spiral. Removable trolley mounted on three wheels, one being a castor. Automatic trolley coupling. Trolley arranged to be lifted and poured by means of our lifting-tilting machines. Stainless steel safety guard. Belt drives and gears submerged in oil bath. Two speeds spiral motor.

Automatic change (but also manual) from 1st to 2nd speed. Two timers. Clockwise and counterclockwise bowl revolution. Hydraulic automatic lifting of the spiral holder head at the end of the working cycle. The hydraulic lowering of the spiral holder head can only occur if its control key is pressed . Hydraulic device to keep the spiral holder head and trolley in a stable position; suitable especially during the kneading of particularly elastic dough when stresses are remarkable.
Mod.
Mixing tool/bowl motor power kW
Bowl volume lt
Max mixing capacity kg
Machine mass kg
Size LPH mm
SA 130
3.0/5.2-1.1
179
130
985
920x1470x1260
SA 160
4.5/7.8-1.1
250
160
1105
990x1725x1290
SA 200
4.5/7.8-1.1
280
200
1125
990x1725x1290
SA 250
5.9/10.3-1.1
392
250
1450
1100x1970x1410
SA 300
5.9/10.3-1.1
425
300
1465
1100x1970x1410
