Sottoriva TWIST Spiral Mixer With Fixed Bowl
Sottoriva TWIST Spiral Mixer With Fixed Bowl
Sottoriva TWIST Spiral Mixer

Alternative Views:

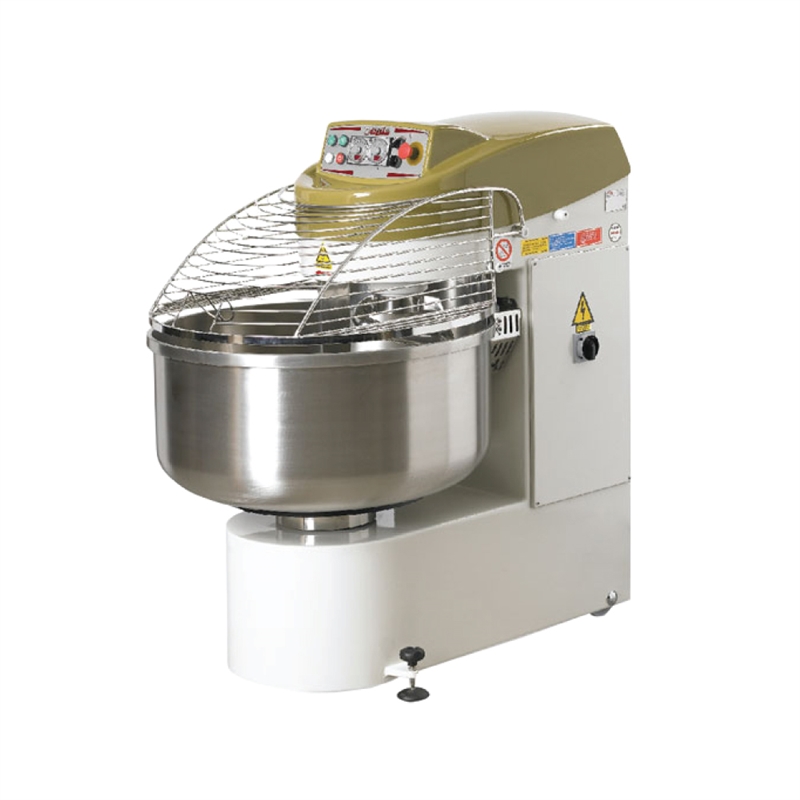

SOTTORIVA TWIST SPIRAL MIXER WITH FIXED BOWL
TO ORDER PLEASE CALL:
626.358.1343
Model's Available: Twist 60, 90, 130, 160 & 200.





Part Number: TWIST


Description

Sottoriva TWIST Spiral mixer with fixed bowl from 60 to 350 kg. of dough
TWIST
Features


Sottoriva TWIST Spiral mixer with fixed bowl. Thick steel structure. Bowl, breaking bar and safety guard made of stainless steel
AISI 304. Stainless

steel AISI 431 spiral. Headcover anti-U.V., ABS material.

Double timers for times working setting (one for each speed) and automatic speed changing from the first to
the second speed. Automatic stop of the machine. Jogging button for the bowl rotation in order to simplify the discharge of the dough.

Reverse bowl rotation selector (only at first speed).

Motion transmission by pulleys and V belts. Overload motor protection. The machine is supplied with fixed
back wheels and front castors with blocking feet during the production cycle.

Model

1 Spiral Speed Motor

2 Spiral Speed Motor

1 Bowl Speed Motor

Dough lbs

Mass lbs

Size in.

TWIST/90

Amps 2.8

Amps 11.5

Amps 1.5

132

694

25x41x49

TWIST/130

Amps 10.2

Amps 16.5

Amps 2.0

287

992

33x50x54

TWIST/160

Amps 9.7

Amps 18.0

Amps 2.1

353

1,367

37x52x57

TWIST/300

Amps 12.5

Amps 21.6

Amps 2.1

441

1,598

37x57x63
